Factory-Engineered Fountain Components & Integrated Systems
Direct supply of precision CNC mechanics, high-pressure flame effect modules, multi-stage water pumps, and dynamic solenoid arrays engineered in our ISO-compliant production hubs.
The Paradigm Shift in Architectural Hydraulic Components
From static aeration basins to high-speed kinetic water choreography, the modern water feature industry demands micron-level CNC tolerances, hermetic IP68 electronic integration, and real-time fieldbus synchronization.
Digital Mechatronic Kinematics
Traditional fixed spray rings have given way to 2-axis and 3-axis CNC vector swing units. Leveraging digital brushless servomotors and zero-backlash harmonic drives, contemporary swing mechanisms articulate up to 120 cycles per minute with sub-millimeter positional repeatability under intense hydraulic backpressure.
Microsecond Actuation Valving
The rise of interactive graphic water curtains and high-speed leaping laminar jets requires proprietary solenoid matrix arrays capable of sub-10ms response cycles. Our custom electromagnetic coil designs eliminate thermal hysteresis and cavitation wear, supporting crisp pixelated drop projection.
Ultra-Efficient Submersible Drives
Modern sustainability targets prohibit energy-intensive pneumatic blasts where closed-loop hydrostatic systems suffice. Variable-Frequency Drives (VFD) coupled with permanent magnet synchronous submersible pumps (PMSM) reduce line power consumption by up to 42% while providing instantaneous dynamic jet ramping.
Vertical Integration, Material Integrity & Strict Engineering Governance
As an authoritative water show equipment manufacturer established in 2007 in Chengdu, Sichuan, Bolier operates state-of-the-art automated workshops bridging fluid dynamics simulation (CFD) directly to multi-axis CNC milling centers. We eliminate supply chain fragmentation by fabricating every mission-critical element under one roof.
Holding the rare Special Grade Certification from the China Fountain Landscape Association, alongside triple Grade 3 general and specialized contracting licenses, our facility enforces metallurgical verification via optical emission spectrometry to guarantee true AISI 304 and 316L stainless steel composition across every nozzle, flange, and submersible chassis.
- 22 Patented Technologies & 500+ Original Mechanical Models: Proprietary seals, anti-vortex flow straighteners, and underwater quick-disconnect fixtures.
- 100% Submerged Pressure Testing: Every pump housing and DMX-RDM underwater luminaire undergoes 72-hour hydrostatic helium-leak test protocols under 0.6 MPa.
- Turnkey Global Export Capability: Custom voltage windings (220V/380V/480V, 50Hz/60Hz), UL/CE/RoHS compliant power distributions, and containerized modular skid units.
Engineered for Extremes: Localized Operational Demands
A precision component must withstand abrasive sediments, thermal expansion, hyper-saline corrosion, and winter freeze cycles. We calibrate material grades and protective topologies for the target ecosystem.
Sub-Zero Continental Basins
Installed in freeze-prone regions such as Central Asia and Northern China. Features include automated pneumatic blowdown purge valves, low-wattage trace-heated manifold insulation, and silicone oil-filled servo swing gearboxes resistant to oil gelation down to -40°C.
Marine & High-Salinity Coasts
Waterfront developments and floating barge fountains utilize passivated AISI 316L and Duplex 2205 stainless steel housings, sacrificial zinc anodes, and silicon carbide mechanical shaft seals impervious to saltwater pitting, barnacle adhesion, and galvanic decay.
Arid High-Temperature Deserts
Specified for Gulf Cooperation Council (GCC) masterplans and desert resorts. Engineered with IP68 Class-H insulated motor coils, cyclonic particulate sediment extractors, and thermal dissipation cooling jackets capable of continuous duty in ambient 55°C water temperatures.
High-Footfall Dry Decks & Atriums
For municipal civic centers, hospitality shopping galleries, and child-safe interactive splash plazas. Employs 24V DC extra-low voltage servo motors, heel-proof anti-suction flush drainage grates, and laminar flow nozzles with zero air entrainment to eliminate overspray mist.
Engineering Specification Matrix for Architectural Procurement
Comprehensive technical parameters for engineering consulting firms, MEP contractors, and landscape architects during bid qualification.
| Equipment Category | Material Specification | Ingress & Electrical Standard | Operational Duty Cycle | Control Topology |
|---|---|---|---|---|
| CNC Swing Mechanisms (CSN Series) | AISI 304 / 316L / Marine Bronze | IP68 Hermetic Hermetic Seal, 24V-48V DC | Continuous 24/7 Dynamic Sweeping | DMX512-RDM / Modbus RTU |
| Submersible Fountain Pumps (QSP/SP) | Cast Iron HT200 / Hydroformed SS304 | Class F/H Insulation, IP68, 380V/480V 3-Phase | Continuous Wet Submerged Run | VFD Closed-Loop Vector |
| Digital Water Curtain Arrays | Aviation Al-Alloy + Polyoxymethylene (POM) | IP65 Solenoid Coils, 12V DC Solid State | > 20 Million Micro-Valve Cycles | Ethernet Art-Net / FPGA Driver |
| Underwater Chromatic Fixtures | Die-Cast 316 Stainless Steel Faceplate | IP68 10-Meter Submersion, 24V DC SELV | 50,000 Hours L70 Luminescence | DMX512 4-Channel RDM |
| Gas Explosion / Flame Cannons | Seamless Heavy-Wall 304 Tubing | Explosion-Proof Valve Body, 220V/110V AC | Instantaneous Multi-Burst Ignition | Dual Redundant Relays / DMX |
Proven Performance in Major Global Landmark Shows
Our custom hardware drives landmark municipal spectacles, international sporting arenas, and prestigious cultural tourism destinations worldwide.
Dazhou Lotus Lake Water Show
Mega-scale lake basin featuring over 600 high-pressure nozzles, heavy-duty CNC swing racks, and water screen movie projection running under automated show control.
Kazakhstan Musical Fountain
Turnkey international supply overcoming continental freeze-thaw cycles, configured for local municipal power grid specifications and extreme winterization protocols.
World University Games Fountain
High-profile welcome waterscape installed at the Phoenix Hill Sports Complex, demonstrating millisecond choreography synchronized with orchestral arrangements.

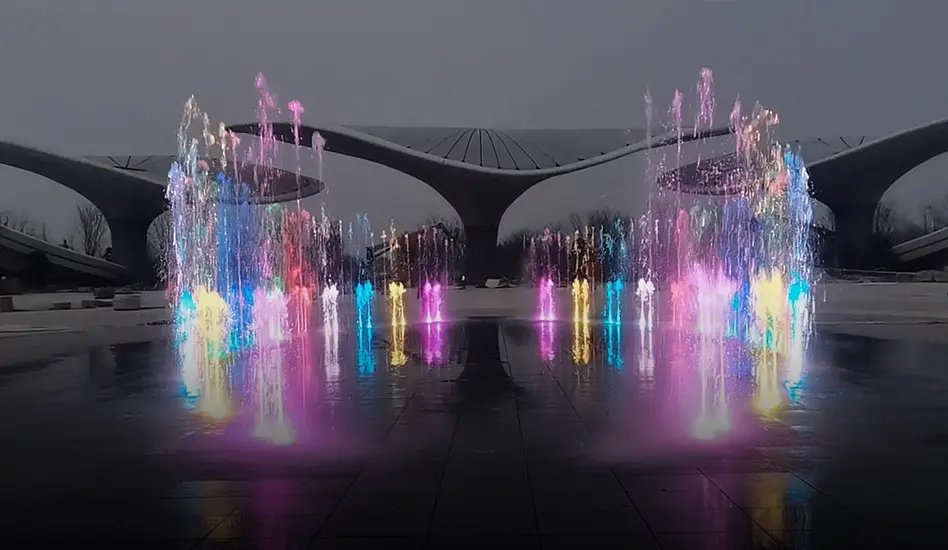

International Horticultural Exposition
Civic plaza dry-deck water matrix utilizing quick-acting solenoid flush valves, zero-trip drainage channels, and low-glare underwater architectural illumination.

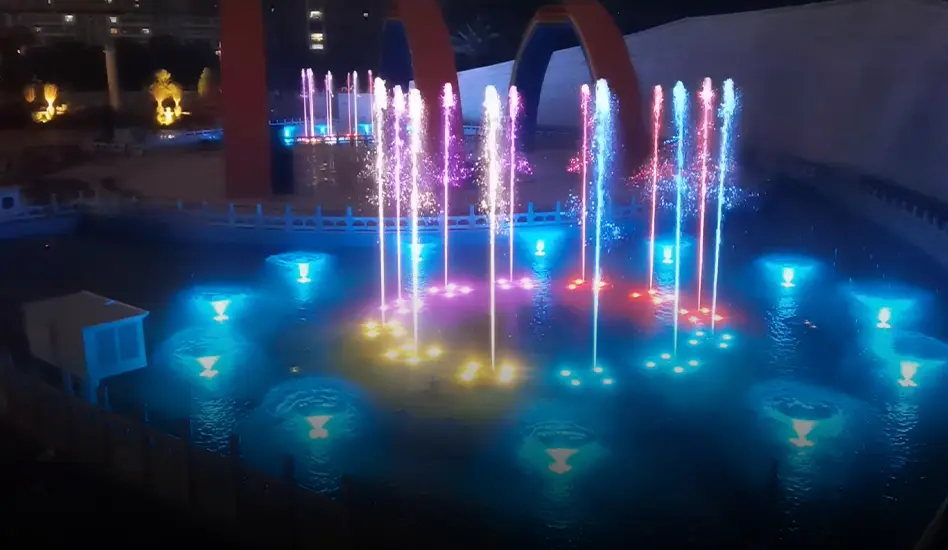

Yunnan Xihua Park Waterscape
Ecological lake enhancement integrating energy-efficient aeration jets, atmospheric mist generators, and delicate ripple devices harmonized with surrounding flora.

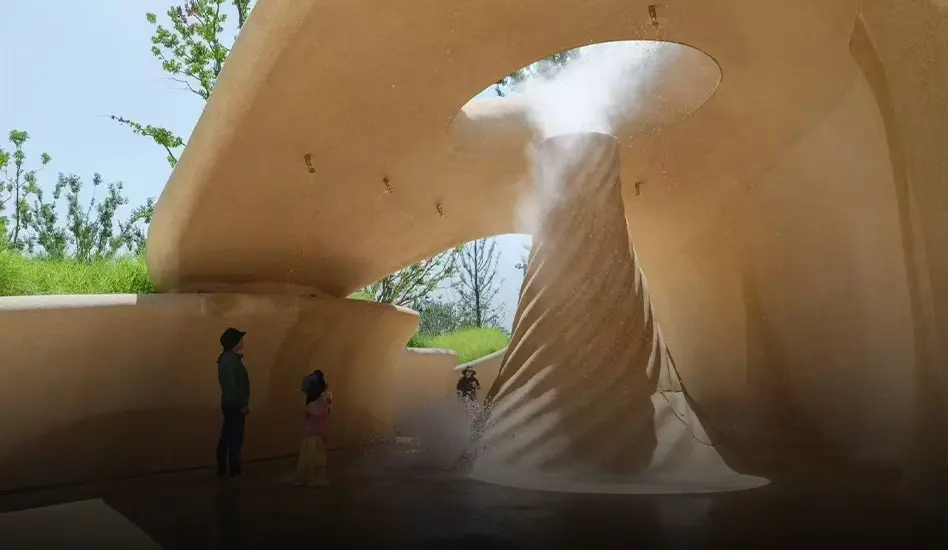

Wuhan Luke Island Water Park
Family entertainment water play facility incorporating kid-safe interactive jets, low-pressure water curtains, and non-slip fiberglass sub-surface piping grids.
Comprehensive Technical & Procurement Inquiries
Key information for engineering teams, landscape architects, general contractors, and overseas procurement officers.
Does Bolier manufacture single replacement components or full turnkey skids?
Both. We support tier-1 EPC contractors needing isolated replacements (such as our CSN-65/50 swing mechanisms, high-head submersible pumps, or DMX nozzles), while also supplying complete pre-plumbed, pre-wired skid packages with factory show control cabinets for seamless job-site drops.
How do you accommodate non-standard voltage and frequency grids overseas?
Our pump winding lines and control engineering teams customize electric motors and transformer arrays specifically for the destination territory, supporting 380V/50Hz (Europe/Asia), 460V/60Hz (North America), 220V 3-phase, and specialized industrial feeds without secondary transformers.
What protocols govern communication between nozzles, pumps, and music?
We standardize on DMX512-A with bi-directional RDM telemetry, allowing the control console to poll motor temperatures, valve states, and lighting health. For large-scale distributed deployments, we leverage Art-Net or sACN backbones converted locally at IP68 junction nodes.
What documentation and test certificates accompany global shipments?
Shipments include EN 10204 Type 3.1 Mill Test Certificates for stainless steels, IP68 helium chamber test verification records, hydrostatic pump performance curves, CE Declaration of Conformity, full wiring schematics, and bilingual installation manuals.
How does the equipment withstand biological fouling and calcium deposits?
All precision nozzles and valve needles feature electropolished finishes (Ra < 0.4 μm) to minimize scale accumulation. For hard or reclaimed greywater sites, we integrate inline automated quartz sand filtration, copper-ion anti-algae dosing, and blowdown self-cleaning ports.
What is the standard lead time for bespoke CNC units and custom manifolds?
Standard catalog components ship within 10 to 14 business days. Custom CNC articulated swing assemblies and complex water curtain manifolds typically complete engineering sign-off, CNC fabrication, testing, and container loading within 25 to 35 calendar days.
Precision Motion, Propulsion & Atmospheric Projection Equipment
Complete your hydraulic specification with multi-axis vector swing mechanisms, servo-driven submersible pumps, high-output underwater fixtures, and water screen visual projectors.
Trusted by Industry Leaders Worldwide
Providing direct component manufacturing and engineering co-development for international architectural, municipal, and entertainment corporations.
Initiate Your Custom Architectural Hydrological Design
Connect with our senior fluid dynamics specialists and CNC manufacturing directors. Receive full CAD/BIM revit component libraries, hydraulic load schedules, and customized B2B quotation matrices within 24 hours.
